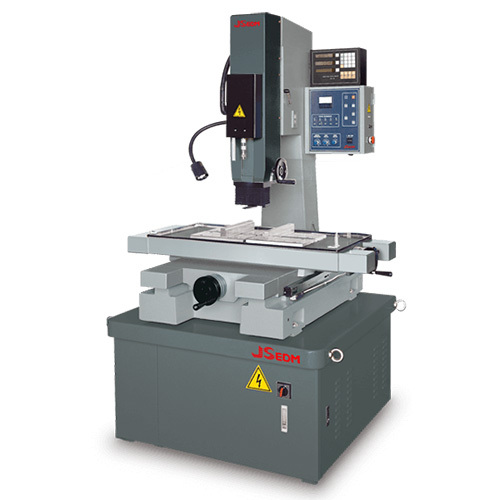

Send InquiryEDM Drill Machine
Price 550000.0 INR/ Number
MOQ : 1 Number
EDM Drill Machine Specification
- Lubricating System
- Centralized Lubrication
- Model No
- AD-40A
- Noise Level
- Low
- Frequency
- 50 Hz
- Connectivity Options
- RS232, USB
- Operating Temperature
- 5C to 40C
- Cooling System
- Water/Oil Cooled
- Production Capacity
- Capable of continuous operation
- Power Rating
- 3 Phase
- Drive
- Servo Drive
- Machine Type
- EDM Drill
- Control System
- Digital Control Panel
- Motor Power
- Servo Motor 1.5 kW
- Accuracy
- High Precision 0.01mm
- Frame Type
- Rigid Box Frame Structure
- Features
- Rapid Drilling, High Precision, User Friendly Interface
- Voltage
- 380V
- Product Type
- EDM Drill Machine
- Technology
- Electrical Discharge Machining (EDM)
- Power Source
- Electric
- Operating Type
- Automatic
- Power
- Approx. 2.5 kW
- Surface Treatment
- Paint Coated
- Dimension (L*W*H)
- Approx. 1200 x 900 x 1700 mm
- Weight (kg)
- About 1000 kg
- Color
- Grey
- Usage & Applications
- Used for precision hole drilling in molds, dies, and metal parts
- Input Water Pressure
- 0.5 MPa
- Ambient Humidity
- 20~80% RH
- Max Workpiece Height
- 350 mm
- Working Speed
- 0.1 to 100 mm/min
- Display Type
- LCD Digital Panel
- Electrode Material
- Copper, Brass, Tungsten
- Spindle Travel
- 300 mm
- Phase Type
- Three Phase
- Max Load on Table
- 200 kg
- Protection System
- Overcurrent, Overvoltage Protection
- Positioning Resolution
- 0.001 mm
- Table Size
- 450 x 650 mm
- Tool Change System
- Manual or Optional Automatic
- Max Drilling Diameter
- 0.3 to 3 mm
- Work Tank Capacity
- 85 Liters
