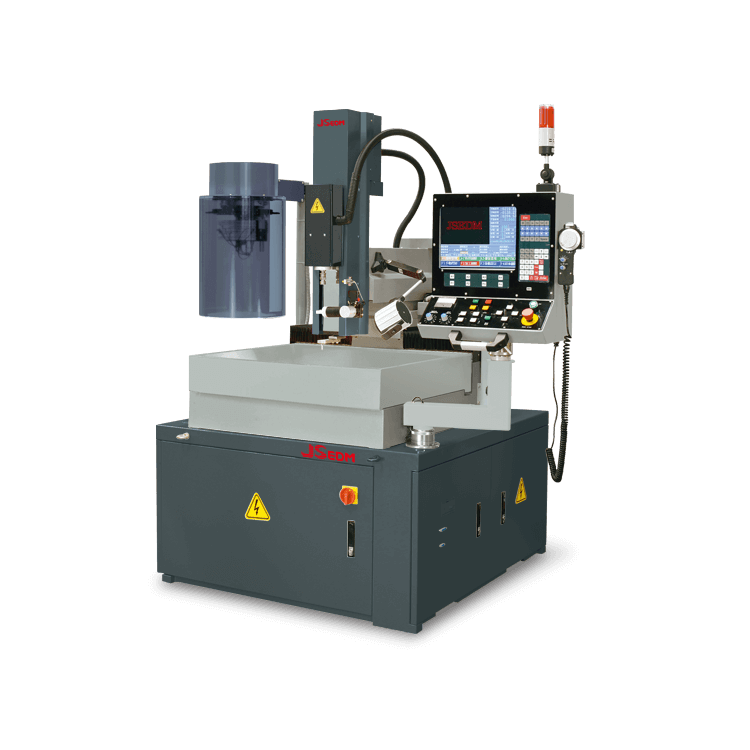

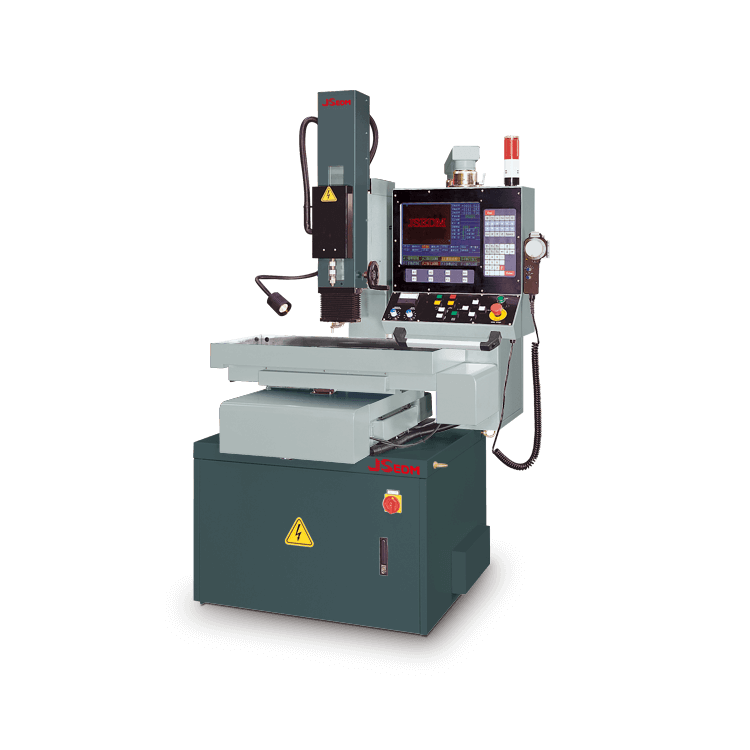

CNC EDM Drill Machine

Name: CNC EDM Drill Machine
Brand: MS POWERDRIVE PRIVATE LIMITED
Price: 1299998.0 INR
Availability: InStock

Price 1299998.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

CNC EDM Drill Machine Specification

Motor Power
Servo Motor 1.5 kW Kilowatt (kW)

Noise Level
Low db

Country Of Origin
India

Frequency
50 Hz Hertz (HZ)

WorkingSpeed
200

Machine Type
EDM Drill

Power Rating
3 Phase

Accuracy
High Precision 0.01mm mg

Operating Temperature
5C to 40C Celsius (oC)

Plastic Processed
YES

Lubricating System
Centralized Lubrication

Control System
Fully Automatic, CNC

Features
Rapid Drilling, High Precision, User Friendly Interface

Connectivity Options
RS232, USB

Production Capacity
Capable of continuous operation Pcs/hr

Voltage
380V Volt (v)

Drive
Servo Drive

Frame Type
Rigid Box Frame Structure

Cooling System
Water/Oil Cooled

Model No
AD-40A

Product Type
Other

Technology
Other

Power Source
Other

Operating Type
Automatic

Power
Approx. 2.5 kW Watt (w)

Pressure
Comp7atible with high-pressure flushing pump system mpa

Surface Treatment
Other

Dimension (L*W*H)
Approx. 1200 x 900 x 1700 mm Inch (in)

Weight (kg)
About 1000 kg Kilograms (kg)

Color
Grey

Usage & Applications
Used for precision hole drilling in molds, dies, and metal parts

Working Speed
0.1 to 100 mm/min

Spindle Travel
300 mm

Display Type
LCD Digital Panel

Tool Change System
Manual or Optional Automatic

Ambient Humidity
20~80% RH

Positioning Resolution
0.001 mm

Table Size
450 x 650 mm

Work Tank Capacity
85 Liters

Max Load on Table
200 kg

Electrode Material
Copper, Brass, Tungsten

Protection System
Overcurrent, Overvoltage Protection

Max Workpiece Height
350 mm

Phase Type
Three Phase

Input Water Pressure
0.5 MPa

Max Drilling Diameter
0.3 to 3 mm

CNC EDM Drill Machine Trade Information

Minimum Order Quantity
1 Number

Delivery Time
24 Hours

About CNC EDM Drill Machine

Jump on the best-seller in the industry-the AD-40A EDM Drill Machine, a must-have for precision drilling in molds, dies, and complex metal components. With an immaculate build and a sensational LCD digital panel, this polished machine delivers a working speed from 0.1 to 100 mm/min and supports drilling diameters between 0.3 and 3 mm. Engineered for continuous operation, its rigid box frame and advanced protection systems ensure sustainable high performance. Equipped with high positioning resolution, robust cooling, and user-friendly controls, the AD-40A is your ticket to immaculate, high-efficiency results.

Advanced Application & Exceptional Features

The EDM Drill Machine is sensational for high-precision drilling in molds, dies, and custom metal parts. Ideal for tool rooms, manufacturing plants, and machine shops, it features immaculate accuracy up to 0.01mm, rapid drilling speeds, and a polished, user-friendly LCD interface. Additional features include a sturdy rigid box frame, reliable overcurrent/overvoltage protection, digital control, and centralized lubrication. It accommodates copper, brass, and tungsten electrodes with seamless manual or optional automatic tool change.

Quick Dispatch & Reliable Supply

We offer quick dispatch for the EDM Drill Machine, ensuring minimal lead time from our India-based facility. Each unit is securely packaged for global shipping via our preferred FOB port, with timely delivery based on location and order size. Competitive asking prices and reliable after-sales support guarantee value and satisfaction for manufacturers, suppliers, and exporters. Large production capacity ensures consistent supply for bulk orders.

FAQ's of EDM Drill Machine:

Q: How does the EDM Drill Machine achieve high precision drilling?

A: The machine utilizes advanced electrical discharge machining (EDM) technology, achieving high positioning resolution (0.001 mm) and accuracy (up to 0.01 mm) for sensationally immaculate results in even the most detailed applications.

Q: What materials can be used as electrodes in this machine?

A: This best-seller supports copper, brass, and tungsten as electrode materials, enabling versatility for different metal-working requirements and ensuring immaculate performance.

Q: Where can the EDM Drill Machine be used effectively?

A: It is ideally suited for use in manufacturing plants, tool rooms, die shops, and precision engineering firms-especially for drilling holes in molds, dies, and custom metal parts requiring high-precision results.

Q: What is the process to order or request a quote for the EDM Drill Machine?

A: To order or request an asking price, simply contact our sales team or authorized distributors. Quick dispatch and reliable packaging are ensured upon order confirmation.

Q: What are the benefit-enhancing features of the machine?

A: The machine features rapid drilling speeds, centralized lubrication, robust safety systems, a user-friendly LCD digital panel, low noise, and connectivity options such as RS232 and USB for sensational ease of use and reliability.
