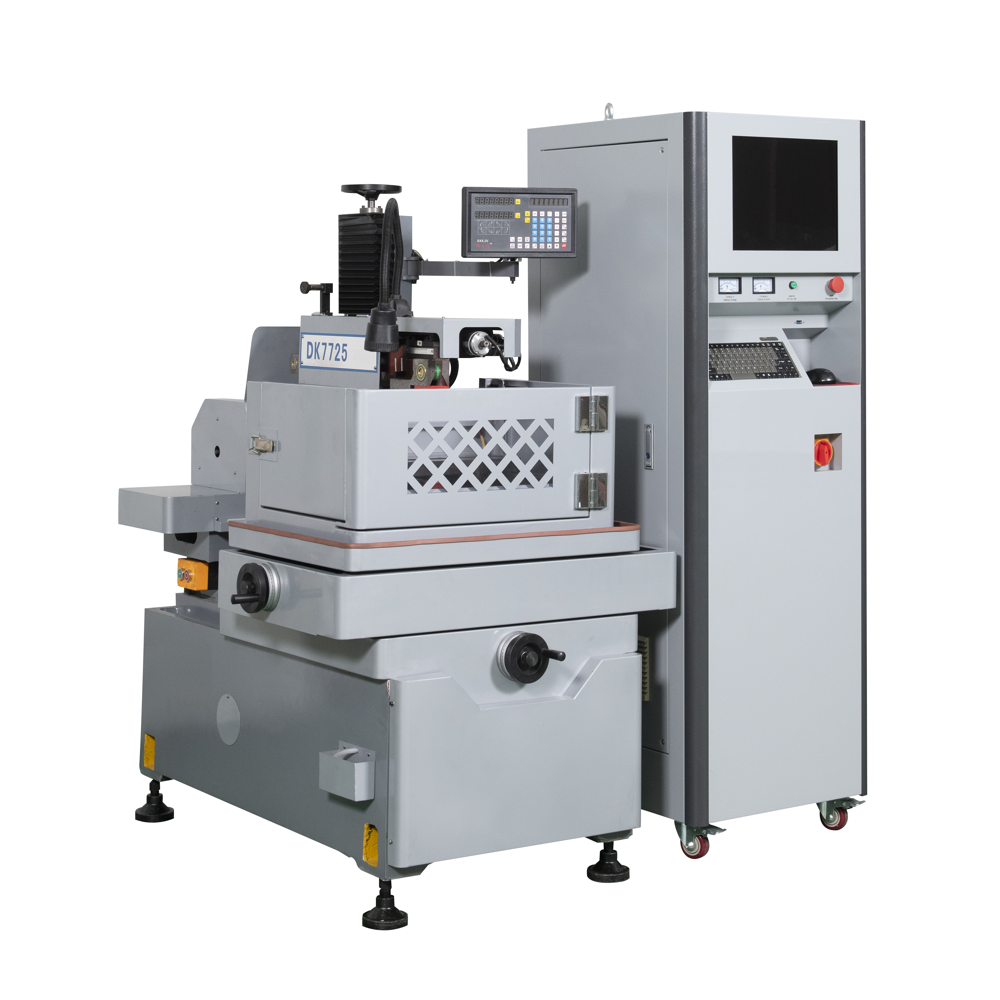

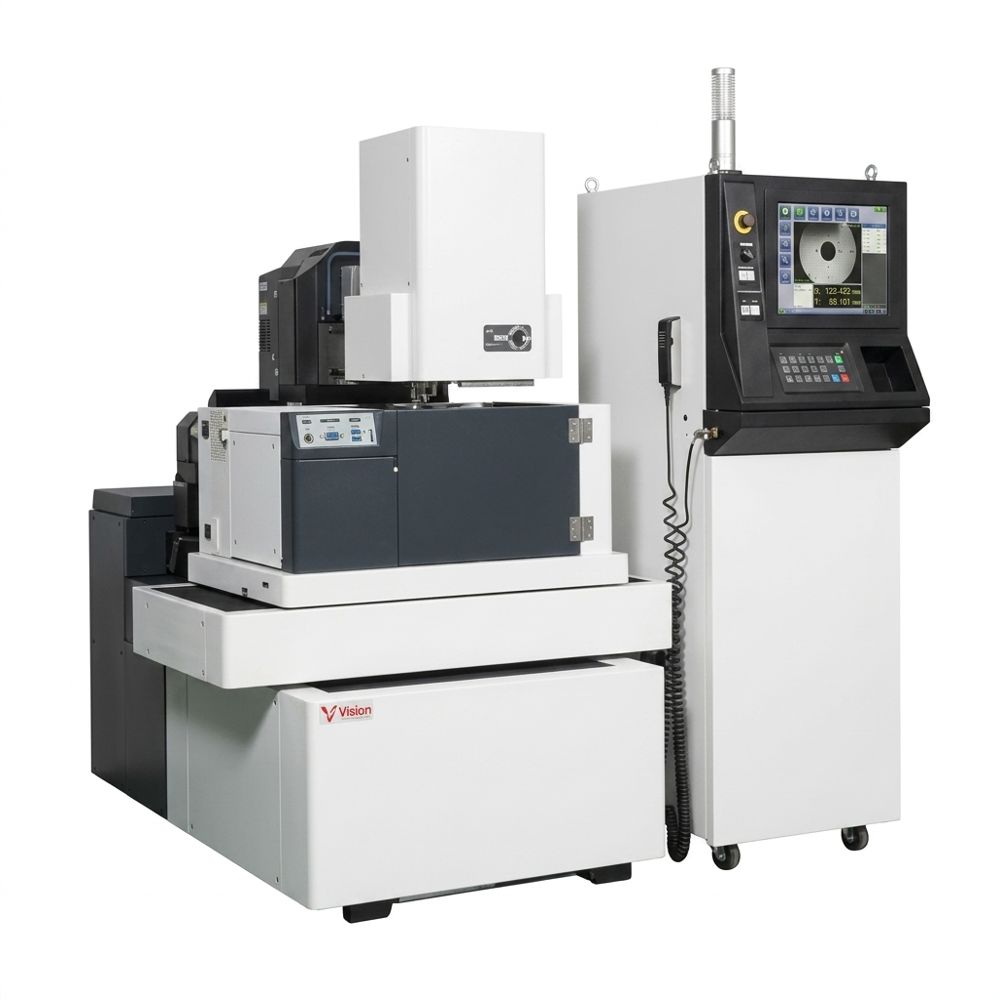

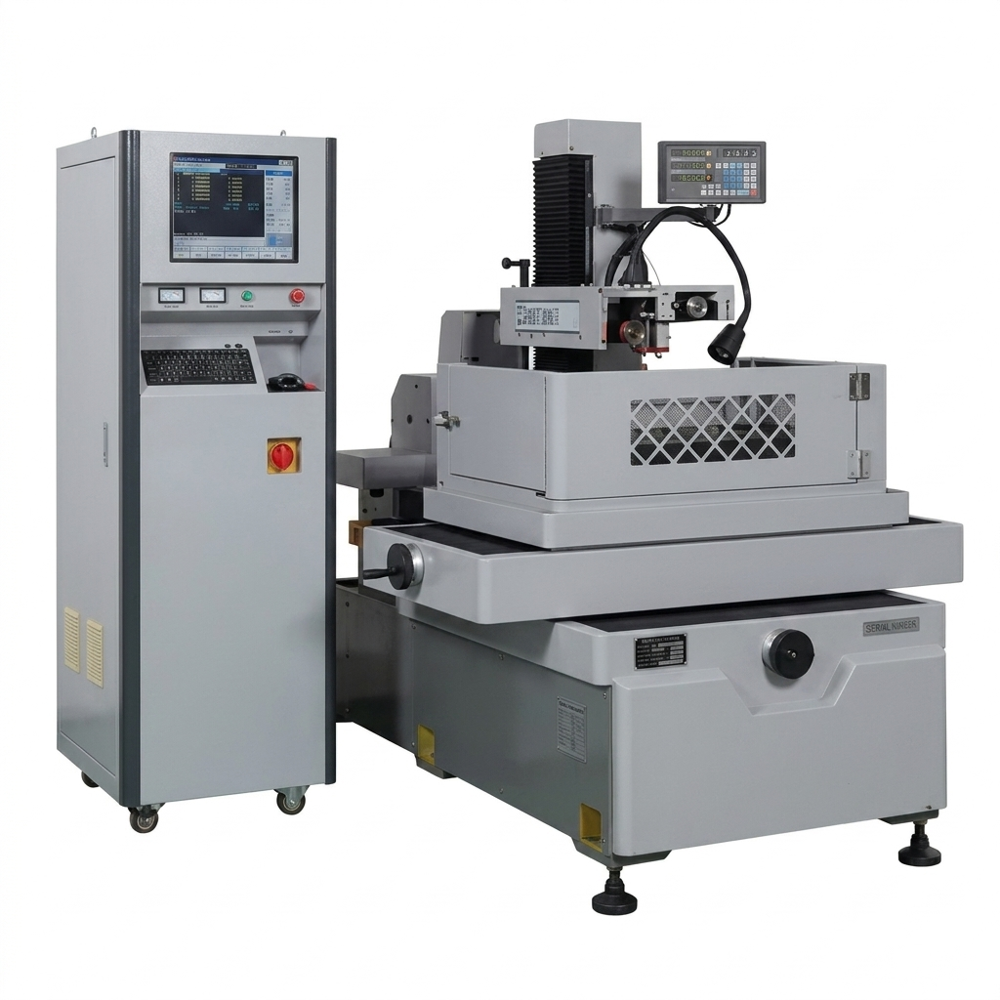

PSD-7725 F Frame Wedm Machine

Name: PSD-7725 F Frame Wedm Machine
Brand: MS POWERDRIVE PRIVATE LIMITED
Price: 949999.0 INR
Availability: InStock

Price 949999.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

PSD-7725 F Frame Wedm Machine Specification

Drive
AC Servo Motor

Country Of Origin
India

Model No
PSD-7735

Control System
Fully Automatic

Production Capacity
Variable, up to several units per day depending on complexity Kg

Power Rating
3-5 kW

Plastic Processed
Not Applicable (for metal and conductive materials only)

Operating Temperature
5C to 40C Celsius (oC)

Connectivity Options
RS232, USB, LAN (available on controller)

Voltage
380V / 415V AC, 3 Phase Watt (w)

WorkingSpeed
250

Machine Type
WIRECUT EDM

Features
Precision cutting, high repeatability, user-friendly interface, multiple safety protections

Lubricating System
Automatic central lubrication

Motor Power
0.75 - 1.5 kW (servo driven axes) Decibel-milliwatt (dBm)

Frequency
50/60 Hz Hertz (HZ)

Accuracy
0.003 mm mg

Noise Level
< 75 dB db

Frame Type
F Frame

Cooling System
Dielectric fluid cooling system

Product Type
Other

Technology
CNC

Power Source
Other

Operating Type
Automatic

Power
3-5 kW (typical for this class of machine) Watt (w)

Pressure
Not Applicable (WEDM is a non-contact process) N/m2

Surface Treatment
Coated

Dimension (L*W*H)
Approx. 1600 x 1200 x 1900 mm (estimated) Millimeter (mm)

Weight (kg)
1900 kg (typical for this frame size) Kilograms (kg)

Color
Light Gray and Black

Warranty
1 YEAR

Usage & Applications
Precision cutting of conductive materials, Mold making, Die manufacturing, Tool and Die fabrication

Software Compatibility
Supports G-code, DXF input capability

Display Screen
15

Max Workpiece Size
770 mm x 250 mm

Power Consumption
Approx. 4 kW/hr under full load

Environment Requirement
Level floor, vibration-free area

Supported Materials
Tool steel, stainless steel, tungsten carbide, copper, graphite

Max Workpiece Height
250 mm

Flushing System
Pressurized dielectric fluid system

Max Cutting Taper
Up to 6 at 80 mm thickness

Positioning Method
Linear Scale Feedback

Table Travel (X/Y)
400 mm x 300 mm

Work Tank Fluid Capacity
Approx. 250 liters

Maintenance
Easy access panels for consumables and maintenance

Wire Feed System
Automatic, programmable

Wire Diameter Range
0.12 mm - 0.25 mm

Safety Features
Emergency stop, automatic wire break detection, interlock system

PSD-7725 F Frame Wedm Machine Trade Information

Minimum Order Quantity
1 Number

Delivery Time
23 Hours

About PSD-7725 F Frame Wedm Machine

Discover the PSD-7725 F Frame WEDM Machine, a matchless solution for precision cutting with a renowned reputation for excellence. This advanced CNC-controlled cutter handles wire diameters from 0.12 mm to 0.25 mm and workpieces up to 770 x 250 mm. Benefit from a hot deal with an unbeatable price on this feature-packed system, boasting a 15" color LCD touchscreen, automated wire feed, and superior safety features. Its noteworthy performance, easy maintenance, and versatile compatibility ensure a best-in-class choice for manufacturers.

Exceptional Performance and Versatile Usage

The PSD-7725 F Frame WEDM Machine is ideal for precision cutting of conductive materials in mold making, die manufacturing, and tool fabrication. Offering both specific and general use, it streamlines operations for manufacturers, exporters, and service providers. Its CNC control system, advanced safety features, and user-friendly interface present strong competitive advantages, making it an essential machine for anyone seeking accuracy, repeatability, and efficiency in metal forming industries.

Payment Terms and Export Markets

Purchasing the PSD-7725 is streamlined through purchase orders and flexible payment terms for both domestic and international buyers. Once the order is confirmed, the machine is shipped and handed over to customers with full documentation. Our main domestic market is India, while our exports reach renowned global hubs in Asia, Europe, and the Middle East - delivering reliable after-sales support and responsive service to customers worldwide.

FAQ's of PSD-7725 F Frame Wedm Machine:

Q: How does the PSD-7725 F Frame WEDM Machine ensure precision cutting?

A: The PSD-7725 utilizes advanced CNC control, linear scale feedback, and a precision machined frame to consistently deliver high accuracy-up to 0.003 mm tolerance-making it ideal for detailed cutting tasks.

Q: What are the primary materials that this machine can process?

A: This machine is designed to cut a variety of conductive materials, including tool steel, stainless steel, tungsten carbide, copper, and graphite, making it suitable for diverse industrial applications.

Q: Where can the PSD-7725 F Frame WEDM Machine be used efficiently?

A: It performs exceptionally in mold making, die manufacturing, tool and die fabrication, and general precision cutting applications across the manufacturing and metalworking sectors.

Q: What is the purchase and handover process for buyers?

A: After a purchase order is received and processed, the machine is packed, shipped, and formally handed over to the buyer with complete documentation and service support.

Q: What benefits does the automatic wire feed and safety system offer?

A: Automatic wire feed reduces downtime and enhances efficiency, while integrated safety features like emergency stop and automatic wire break detection ensure operator safety and smooth operation.
